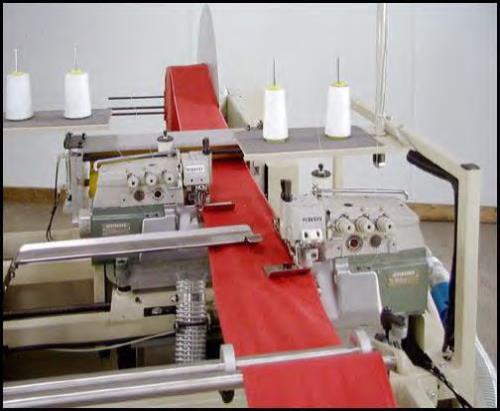

1961 - dual purpose machine for borders & pillow-top gussets
1961 - DUAL PURPOSE MACHINE FOR BORDERS & PILLOW-TOP GUSSETS
Features
• Dual electronic servo drive motors with needle positioning
• Material capacity: 0" - 36" according to machine class
• Turn off left sewing head for single serging
• Needle positioning (no synchronizer required)
• Electronic thread break detection
• Variable tensioning of border material
• Servo drive variable speed puller with long lasting urethane rollers
• Stops automatically for material splice
• Foot pedal activation for splicing and servicing
• Border may be serged without edge trim
Technical Features
Max sewing speed (rpm) : 6000
Factory preset speed (rpm) : 5000
Max stitch length (spi) : 4
Needle system : SNB27140
Needle Size : 22/140
Weight of material : MEDIUM
Max presser footlift (inch) : 7/32
Voltage (v/ph/hz) : 220V 1PH 60HZ
Current (amps) : 10
Motor type : EFKA DC
Air pressure (psi) : 80
Air consumption (cfm) : 24
Shipping weight (lbs) : 1200
Shipping dimensions (w/l/h, inch) : 62 x 96 x 57
Feet per min. : 125
Brochure
Video
