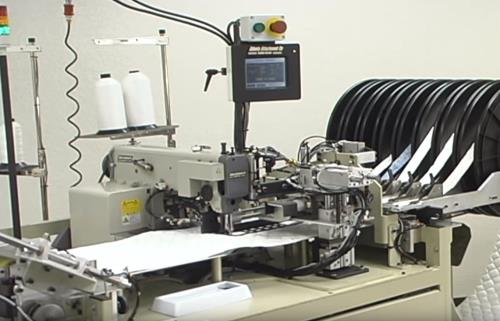

3300 - BORDER - HANDLE, MEASURE, CUT & CLOSE MACHINE

Features

    • Measures border, sets handles (4 or 8), measures, cuts and closes border
    • Accommodates 8 rolls of handle for quick changeover
    • Automatically detects and cuts out splices and defects
    • Lockstitch sewing head for closing border with needle positioner, automatic thread trimmer & presser footlift
    • Feeds pre-made handles from roll
    • Capacity up to 15" borders
    • Stores up to 22 styles
    • Programmable box "X" Tacker
    • Serial Bus Control System with touch screen unconditionally guaranteed three years
    • Self-diagnostic software
    • Heavy-duty guillotine cutter with tempered blades
    • Heavy-duty feeding module with urethane rollers

Technical Features



    Closer

    Tacker

    Max sewing speed (rpm)

    5000

    2300

    Factory preset speed (rpm)

    1800

    1500

    Max stitch length (spi)

    6

    8

    Needle system

    SNDLX1140

    SN135X1722

    Needle size

    22-140

    22-140

    Weight of material

    MEDIUM

    Voltage (v/ph/hz)

    220V 1PH 60HZ

    Current (amps)

    5

    Motor type

    EFKA DC

    Air pressure (psi)

    80

    Air consumption (cfm)

    6

    Shipping weight (lbs)

    2250

    Shipping dimensions (w/l/h, inch)

    65x110x88



    Pieces per hour (with 4 handles)

    32
