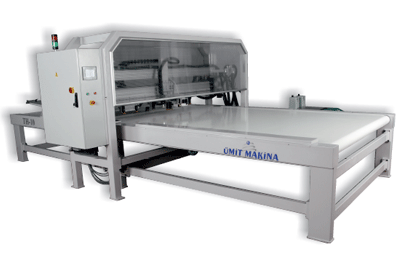

TH-10 AUTOMATIC GLUING LINE

Features

    • Edge and centre strip applications
    • Hotmelt adhesive application
    • Contact free
    • Automatic width, lenght and height control
    • Three point long edge tracing
    • Foam or foam+felt operation mode
    • Ease of use and very low maintenance
    • Integratable in the production line

Technical Features

    Control: Motion controller, frequency control and touch
    screen control panel
    Operation mode: straight or bead application
    No of applicator: 11
    Output capacity: 1.5 min / mattress
    Holt-Melt gluing tank: Standart Unit 30 Liter. Robatech
    Foam sheet thickness: Min. 0,5 mm / Max. 100 mm
    Power: 380 V 3 phase 50 hertz 20 Kw
    Air pressure: 6 Bar
    Weight: 3330 kg
    Total area reguired: 13030 x 3480 mm
Brochure Technical Specs Video
