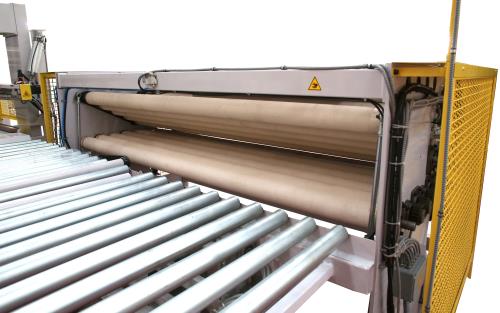

ARP-20 AUTOMATIC MATTRESS ROLL AND PACK MACHINE

Features

    User friendly touchscreen panel for all machine settings
    Fully automated double sealing heating bars
    Up to 60 tones hydraulic press
    Motion control unit with servo motor driven system
    2 mattresses / min. / 960 mattresses / 8hrs.
    2 operation modes; Regular mattress packing and Roll pack
    Automatic size adjustment
    Trim removal kit
    Zero fold to prevent material damage

Technical Features

    Output Capacity: 1 Minutes / 2 Mattress
    Minimum Mattress Height: 10cm
    Maximum Mattress Height: 38cm
    Minimum Mattress Width: 75cm
    Maximum Mattress Width: 210cm
    Nylon Thickness: 0.1 micron
    Maximum Nylon Width: upper 2800 mm lower 2700 mm
    Exit Diameter: 30 cm
    Dimensions(WxLxH): 5500x9000x2750 mm
    Hydraulic Press Pressure: 48 – 60 ton
    Air Pressure: 6 Bar
    Weight: 8200kg
    Power Requirement: 380 V 3 Phase 20 Kw
