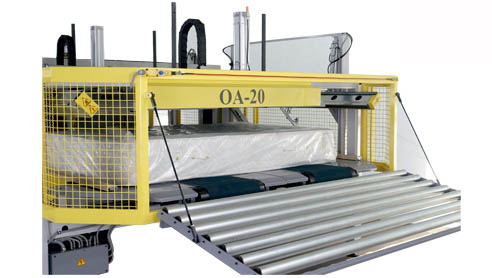

OA-20 AUTOMATIC MATTRESS PACKING MACHINE

Features

    • Full automatic operation capabilities and rapid rate of work
    • Servo controlled seal bars are self-adjusting for all bed sizes
    • High reliability of the sealing process with continuous heat seal bars
    • Compact design and compatible for integration with conveyors
    • Double seal bars, constant heat, PID controlled
    • Lower film magazine

Technical Features

    Capaciyt OA-20: up to 2 mattresses per 90 sec. including compression
    Capacity OA-30: up to 3 mattresses per minute including compression
    Film thicknesses: 70 – 150 micron, printed film for brand promotion.
    Maximum roll width: upper 2700 mm lower 2300 mm
    Maximum mattress size: 210x220x45cm / Min: 10 cm
    Control: Motion controller
    Power: 380 V. 3 Phase 10 Kw or Customer Specification
    Air pressure: 6 Bar
    Air consumption: 55 lt./min.
    Total area required (OA-20): 7570x3780
    Total area required (OA-30): 10000x3780
    Weight: 3500 kg.
Brochure Technical Specs Video
