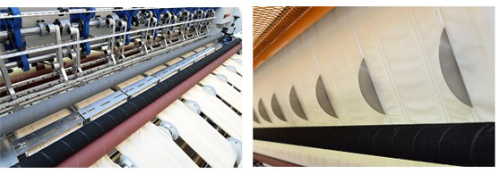

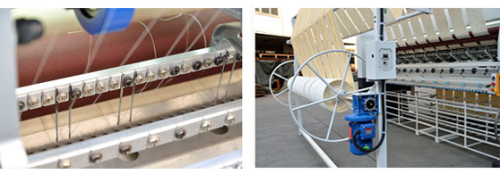

BQ-50 AUTOMATIC MULTI NEEDLE BORDER QUILTING MACHINE
Features
• High speed up to 1.250 rpm, chain stitch multi needle quilting or border making machine
• Automatic pressure roller gap adjustment for different fabric thickness
• Automatic break detection and step-by-step quilting embroidery function
• Pneumatic thread trimming technology for rapid cutting
• Full automatic sewing system integrable with panel cutting process in single cycle
• Widescreen user friendly touchscreen panel for all machine settings
• 6 axis servo motor control system for accurate and precise operation
• Ease of use, stable running and high precision quilting.
• Enhanced double bearing pin row bar
• Heavy duty shock absorber hopper balance system
• Robust structure with low noise and vibration
• Wide variety of pattern options including 360 and 180 degrees, storage up to 2.000 patterns
• Up to 300 decorative border pattern file
Technical Features
• Size(L*W*H) : 4740×5265×2220mm
• Weight : 4000kg
• Rotation speed : 2500RPM
• Max.Sewing Thickness : 80mm
• Stitch : 2~10mm
• Sewing Head Qty : 3
• Max.Sewing Width : 2400mm
• Min.Sewing Width : 1160mm
• Min.Sewing Length : 600mm
• Power : 11kw
• Needle space : 6.35mm
• Voltage : 380V/220V 50HZ/60HZ
