1354-950 - thermo-label transfer machine

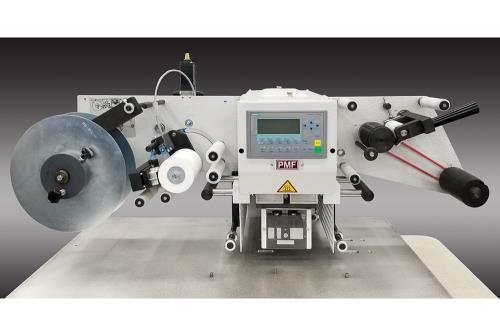

1354-950 - THERMO-LABEL TRANSFER MACHINE
Features

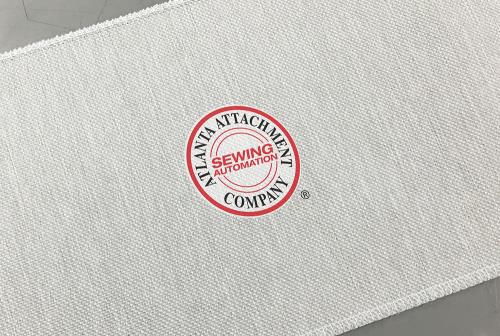

• Transfer of thermo-labels to woven and non-woven materials by reel-to-reel technology
• Simple operation and maximum safety
• Photo sensory locating control guarantees optimal accuracy for positioning of labels
• Change out time for tool and die are reduce to a minimum
• Pneumatic electronic temperature and application time controllers ensure a proper adjustment to the decal and material specifications
• The machines design allows use of diverse stationary and sliding tables
Technical Features
Voltage (v/ph/hz) : 220V 1Ph 60Hz
Current (kVA) : 0.7
Motor type : DC 24V
Air pressure (psi) : 90
Air consumption (cfm) : 1
Shipping Weight (lbs) : 705
Shipping Dimensions (w/l/h, Inch) : 40 x 59 x 70
Pieces per Hour (depending on label size and material) : 300 - 450
Brochure
Video
