K-25 HIGH SPEED MATTRESS TAPE EDGE MACHINE

Features

    • Double lock, heavy duty chain stitch sewing head up to 3.000 stitches per munite
    • Servo driven sewing head and operator carriage with no belt connection

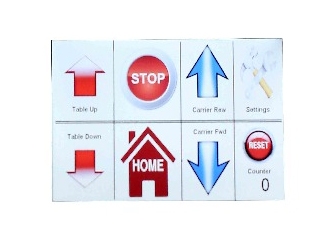

    • User friendly touchscreen panel to control all operational parameters
    • Adjustable auto slow down at corners
    • Undertable electric supply cabinet with carriage knee control system
    • Adjustable table height and sewing head angle
    • Straight line speed control with timing upon corner
    • Full synchronization of servo driven carriage and sewing head at take off/stop and corners to eliminate fabric shrinking.

Technical Features

    • Sewing Head: Ctec 300UB5 Chain Stitch Sewing Head
    • Carriage Motor: 220V Servo Motor 1.000W
    • Sewing Head Motor: 220V Servo Motor 750W
    • Table Motor: 0.37 Kw, 380 AC
    • Head Angle Motor: Linear Actuator 36V 100W DC
    • Control System: Servo Driven and PLC Control with HMI settings
    • Operational Area: 3.500 x 4.500 mm
    • Standart Table Size: 1.550 x 2.050 mm
    • (Special Table Sizes Available up to 2.050 x 2.050 mm)
