Technical Features

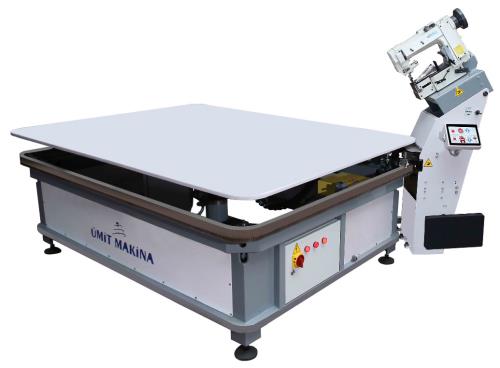

K-25
Sewing head: Ctec 300UB5 Chain Stitch Sewing Head
Mattress Capacity (90x190): 90-110 piece / 8 hours
Carriage motor: 220V Servo Motor 1.000W
Sewing head motor: 220V Servo Motor 750W
Table motor: 0.37 Kw, 380V AC
Head angle motor: Lineer Actuator 36V 100W DC
Control system: Servo Driven and PLC Control with HMI settings
Operational Area: 3.500 x 4.500 mm
Standart Table size: 1.550 x 2.050 mm
(Special Table Sizes Available up to 2.050 x 2.050 mm)

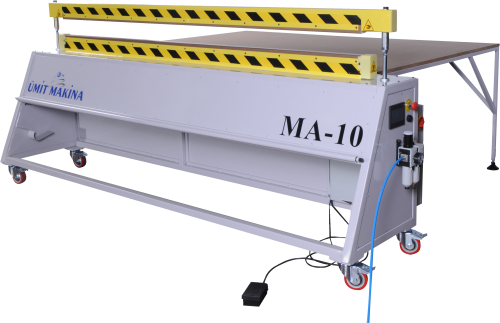

MA-10
Dimension: 415x2600x860 mm.
Mattress Capacity (90x190): 150 mattress / 8 hours
Power: 220 V. 1 Phase 2 Kw or Customer Specification
Air Pressure: 6 Bar
Weight: 290 kg.
Total area required: 3000x3000 mm
