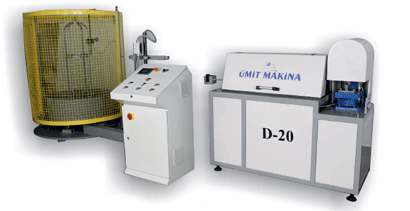

D-20 AUTOMATIC WIRE STRAIGHTENER

Features

    • Produces Straightened wire pieces of any length.
    • Programming of the length of each frame and the number of pieces is done by touchscreen panel and up to 7 different size can be stored.
    • Electronic cutting adjustment.
    • No operator is needed during production.
    • No time loss while changing sizes.
    • Ease of calibration with highly sensible encoder counter in any wire size(+/- 1 mm)
    • ***Optional bending mechanism

Technical Features

    Wire diameter: 3-5 mm.
    Max weight of wire roll: 900 kg
    Driving motor: 0.75 Kw
    Straightening Motor: 2.2 Kw
    Twister motor: 1.1 Kw
    Cutting motor: 1.1 Kw
    Power: 380 V. 3 Phase or Customer Specification
    İnverter controlled system
    Air pressure: 6 Bar
    Weight: 1152 kg.
    Cutting press runs only with wire.
    Energy saving design and minimized cutting press wearing.
    Total area required: 2000 x 7000 mm.
