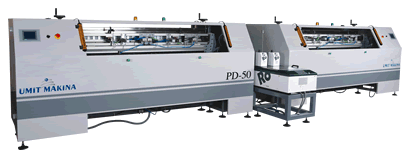

PD-50 POCKET SPRING TWIN ASSEMBLY MACHINE

Features

    • High capacity production with its twin feeding system
    • Assembles the prefabricated pocket rows with welded in springs into pocket spring interiors of various sizes.
    • Semi-automatic pocket spring assembler for pocketed type innerspring units.
    • Pocket spring strips are manually placed into the machine
    • Simple and quick set up
    • Ease of use and low maintanence
    • Zone, parallel or nested assembly

Technical Features

    Sping type: Barrel or cylindrical
    Spring diameter: 42-70 mm
    Spring pocketed height: 100-210 mm
    Max. widht: 2000 mm
    Cycle time: 10 sec. /Row
    Gluing type: Continuous or bead (economic mode)
    Controls: PLC Control, frequency inverters and control panel
    Spring unit: Parallel or Nested or Zoning
    Fabric rolls: Pad Mac. 900 mm – Weight Max. 70 Kg
    Holt melt glue tank: Robatech Concept 30 Lit.
    Power requeriments: 380 V 3 phases 50 hertz 11 Kw
    Air pressure: 6 Bar
    Air consumption: 1000 lt./min.
    Weight: Approx. 1950 Kg including hotmelt unit 30 Litre
    Total Area required:

Brochure Technical Specs
