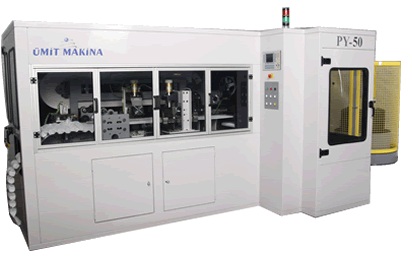

PY-50 AUTOMATIC POCKET SPRING COILING MACHINE

Features

    • Fully automatic mode of operation and automatic spring setting with an electronic cam
    • Continuous or adjustable mode of operation for automatic cutting
    • Electronic cam for easy changeover
    • Heat treatment with cooling system
    • Fabric strip feed and folding device and upright positioner
    • Equipped with ultrasonic welding system
    • Soundproof enclosure
    • Automatic cutting device
    • Ergonomical design assures optimum production output

Technical Features

    Output Capacity: 70 springs per minute depending on wire and fabric quality
    Wire gauge: 1.30 – 2.00 mm
    Spring central diameter: 55-65 mm
    Operation mode: Continuous or adjustable for required coil count
    Welding unit: Ultrasonic welding system
    Controls: Motion controller, PLC control, frequency inverters and touchscreen control panel
    Max. Wire swift for reels: 1.000 kg.
    Spring height outside fabric: 130-240 mm
    Spring pocketed height: 100-210 mm
    Fabric roll width: up to 800 mm
    Spring type: Barrel or cylindrical
    Speed control: Electronic
    Main motor control: 8 x brushless servo motor
    Swift motor power: 1.1 Kw
    Air consumption: 800 lt./min.
    Heat treatment control: Electronic switching
    Power: 380 V 3 phases 50 hertz 18 Kw
    Weight: 3.747 kg.
    Total Area required: 6250 x 2900 mm
    ***Automatic cutting device
