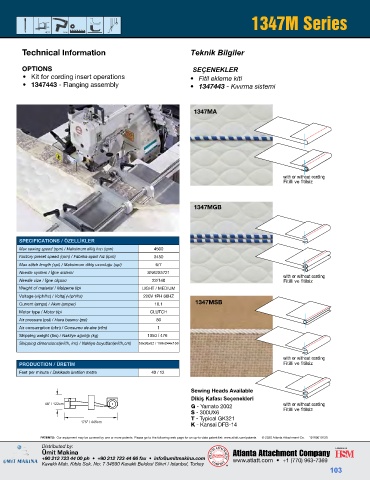

1347M Series

Technical Information Teknik Bilgiler

OPTIONS SEÇENEKLER
• Kit for cording insert operations • Fitil ekleme kiti
• 1347443 - Flanging assembly • 1347443 - Kıvırma sistemi

1347MA

with or without cording
Fitilli ve fitilsiz

1347MGB

SPECIFICATIONS / ÖZELLİKLER
Max sewing speed (rpm) / Maksimum dikiş hızı (rpm) 4500
Factory preset speed (rpm) / Fabrika ayarlı hız (rpm) 3450
Max stitch length (spi) / Maksimum dikiş uzunluğu (spi) 6/7
Needle system / İğne sistemi SN62X5721
with or without cording
Needle size / İğne ölçüsü 22/140 Fitilli ve fitilsiz
Weight of material / Malzeme tipi LIGHT / MEDIUM
Voltage (v/ph/hz) / Voltaj (v/ph/hz) 220V 1PH 60HZ
Current (amps) / Akım (amper) 10.1 1347MSB
Motor type / Motor tipi CLUTCH
Air pressure (psi) / Hava basıncı (psi) 80
Air consumption (cfm) / Consumo de aire (cfm) 1
Shipping weight (lbs) / Nakliye ağırlığı (kg) 1050 / 476
Shipping dimensions(w/l/h, inc) / Nakliye boyutları(w/l/h,cm) 59x96x62 / 150x244x158

with or without cording
PRODUCTION / ÜRETİM Fitilli ve fitilsiz
Feet per minute / Dakikada üretilen metre 40 / 12

Sewing Heads Available
Dikiş Kafası Seçenekleri
48” / 122cm with or without cording
G - Yamato 2002 Fitilli ve fitilsiz
S - 300UX6
T - Typical GK321
175” / 445cm
K - Kansai DFB-14
PATENTS: Our equipment may be covered by one or more patents. Please go to the following web page for an up-to-date patent list: www.atlatt.com/patents © 2020 Atlanta Attachment Co. 19189010120
