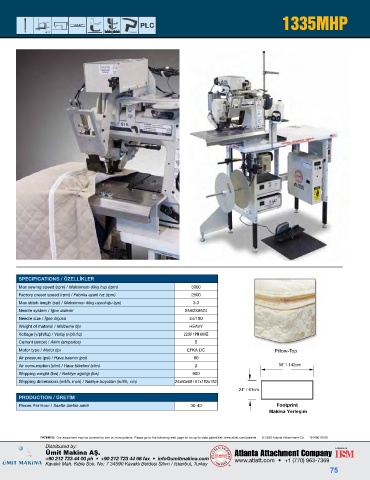

1335MHP

SPECIFICATIONS / ÖZELLİKLER
Max sewing speed (rpm) / Maksimum dikiş hızı (rpm) 3000
Factory preset speed (rpm) / Fabrika ayarlı hız (rpm) 2500
Max stitch length (spi) / Maksimum dikiş uzunluğu (spi) 3.3
Needle system / İğne sistemi SN62X8524
Needle size / İğne ölçüsü 24/180
Weight of material / Malzeme tipi HEAVY
Voltage (v/ph/hz) / Voltaj (v/ph/hz) 220V 1PH 60HZ
Current (amps) / Akım (amperios) 5
Motor type / Motor tipi EFKA DC Pillow-Top
Air pressure (psi) / Hava basıncı (psi) 80
Air consumption (cfm) / Hava tüketimi (cfm) 2 56” / 142cm
Shipping weight (lbs) / Nakliye ağırlığı (lbs) 900
Shipping dimensions (w/l/h, inch) / Nakliye boyutları (w/l/h, cm) 24x60x60 / 61x152x152
24” / 61cm
PRODUCTION / ÜRETİM
Pieces Per Hour / Saatte üretim adeti 30-40 Footprint
Makina Yerleşim

PATENTS: Our equipment may be covered by one or more patents. Please go to the following web page for an up-to-date patent list: www.atlatt.com/patents © 2020 Atlanta Attachment Co. 19189010120
